SiC Substrate Wafer


4 inch SiC Wafer manufacturers

Homray Material Technology provide advanced material 4 inch SiC wafer for semiconductor and lab reseaching applications. We supply both standard and c...
Product Description:

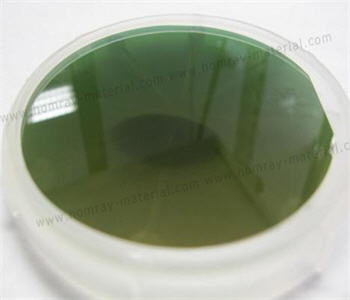

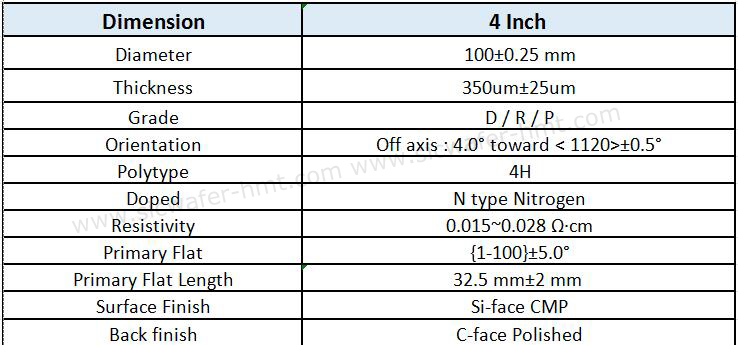

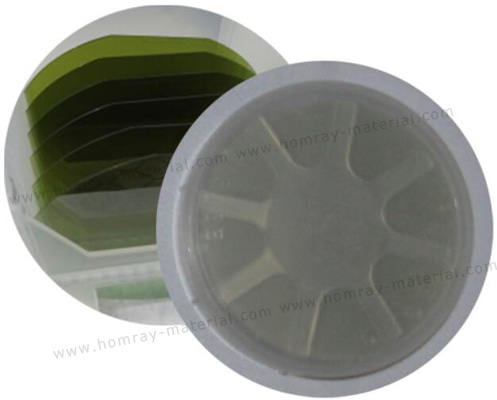

Homray Material Technology provide advanced material 4 inch SiC wafer for semiconductor and lab reseaching applications. We supply both standard and customized conductive 4H-N type 4 inch SiC substrate wafers. Our 4 inch SiC Wafers have good parameters, low MPD, low TTV BOW etc...We use safety cassette package 4 inch SiC Wafer and ship via Internation Express.

SiC Wafer Application

SiC wide energy Gap (Band Gap) than the existing Si (silicon) Gap width more than 3 times wider, can withstand more than 10 times the voltage, SiC low loss, high power characteristics suitable for high voltage and high current application field, including electric vehicles, electric vehicle charging infrastructure, solar energy and offshore wind power and other green power generation equipment.ompared with traditional Si, the third-generation semiconductor material SiC can reduce the power conversion loss by 50%, reduce the power conversion cost by 20%, and improve the endurance of electric vehicles by 4%.
