SiC Substrate Wafer


High Quality SiC Wafer Manufacturer For MOSFET

SiC Wafers can be used as substrate for SiC on SiC Epitaxy wafer, HMT offer ultra low MPD SiC wafer for MOSFETsemiconductor device fabrication. Normal...
Product Description:

SiC Wafers can be used as substrate for SiC on SiC Epitaxy wafer, HMT offer ultra low MPD SiC wafer for MOSFET semiconductor device fabrication. Normally,we supply 6 inch and 8 inch SiC wafers, but if customers have 2 inch or 4 inch SiC Wafers demand, we can make special produciton for them. Production Grade SiC wafer for MOSFET the MPD<0.2cmohter parameters also mucm better than D grade SiC wafers. Please don't worried about cost, we always provide best price for customers.

Q:  SiC Wafer Dimension ?
A:  We can supply 2 inch 4 inch 6 inch 8 inch SiC Wafers.

Q: What grade of SiC Wafer in HMT company?
A: We have D grade R grade and P grade SiC Wafer for different application.

Q: If customer need customization, can HMT support this?
A: Of course, we support customized SiC Wafer upon different spec.

Q: Leadtime for SiC Wafers
A: Normally leadtime is within 4 weeks,we'll confirm the leadtime before sign the contract.

Q: Transportation way

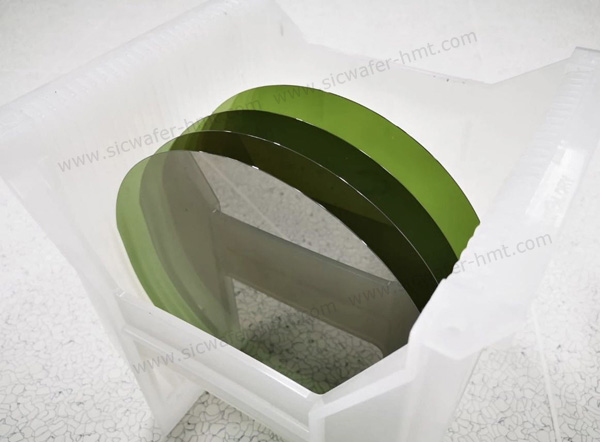

A: We use safety casssette to package SiC Wafers and delivery by FedEx,DHL etc.
